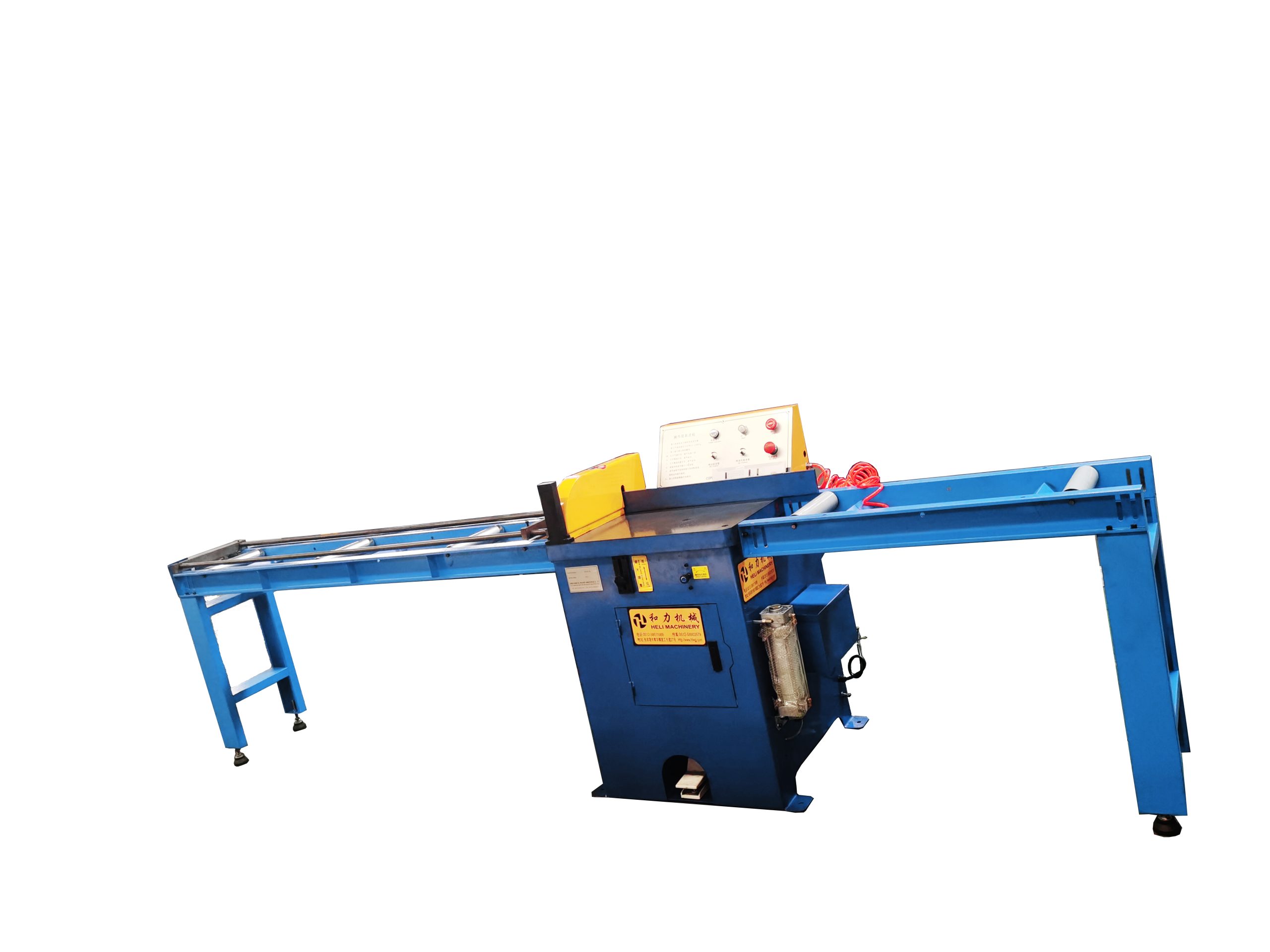

Copper Tube Cutting Machine
1.The treadle-type switch allows automatic swaging and sawing.
2.Automatic oil injection leaves no burrs on the cut surface,therefore, the saw blade is more durable
3.Sawing of a single piece and simultaneously of multiple pieces are both possible ,hence applicable for production at both a small and a large amount.the 4.hidden saw blade means enhanced safety and better performance
|
model |
HWJ-L455 |
|
Cuttting angle |
90 degree and 45 degree |
|
Maxi cutting width |
250mm |
|
Maxi cutting thickness |
125mm |
|
Speed of the spindle |
3500PRM |
|
Saw blade size |
405*32mm*100t |
|
Cutting speed |
10-15cycle /min |
|
Height of the working table |
850mm |
|
motor |
3kw*2 |
|
Air pressure required |
5-6kw/cm2 |
|
Machine dimension |
0.6*0.6*1.25mm |
|
weight |
300kg |


FEEDING RACK

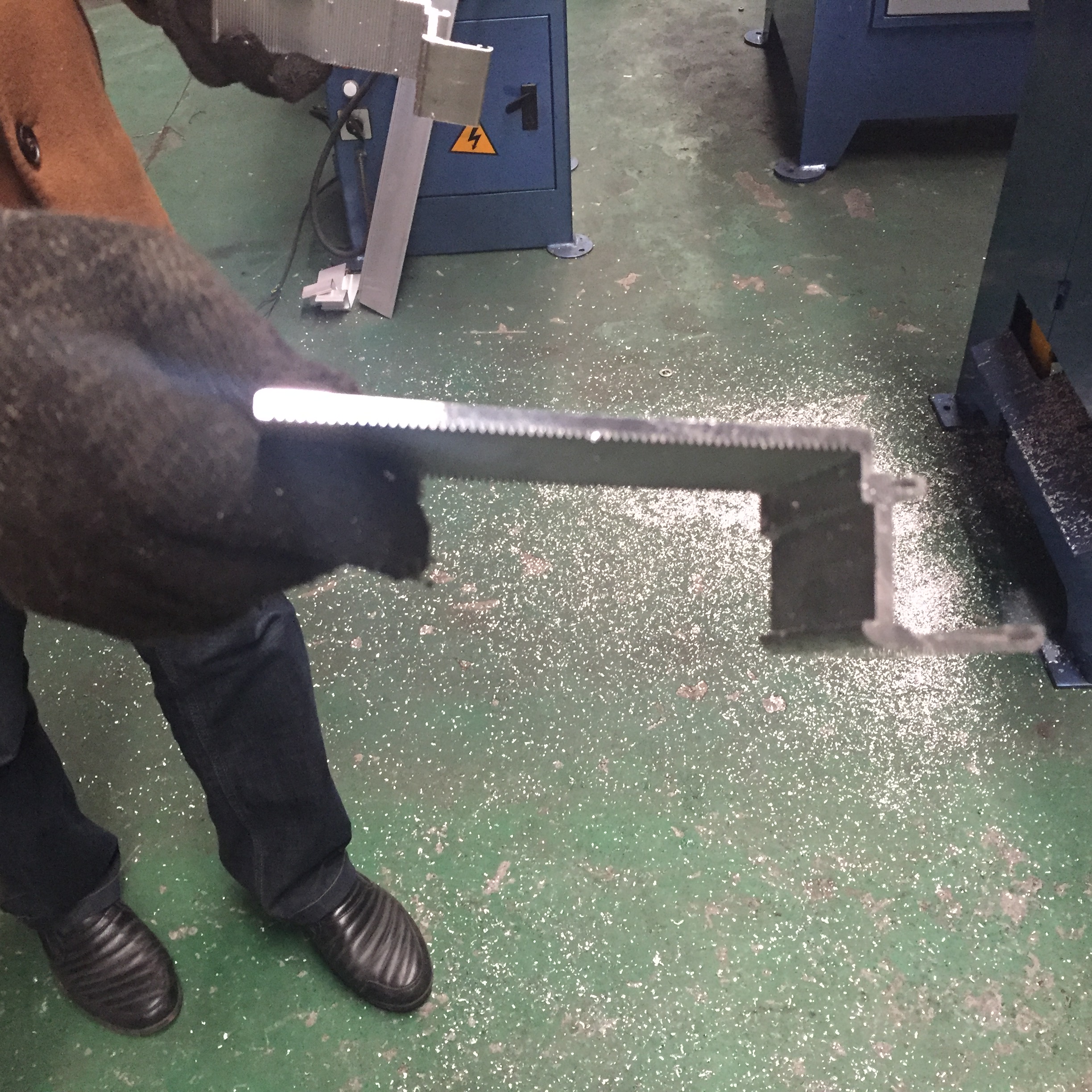

ALUMINUM PROFILE CUTTING

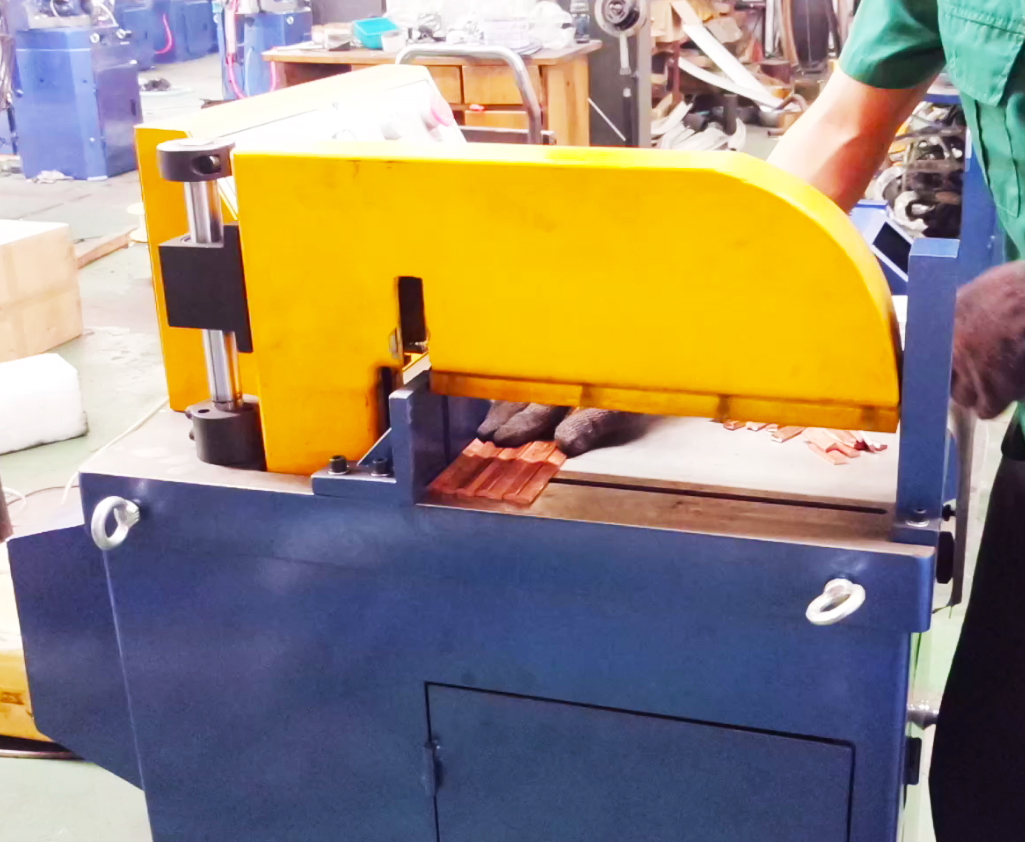

COPPER PROFILE CUTTING
