Detail
- NC Control Unit: Easy Operation and Maintenance
- Suitable for the shrinking, expanding of various metal pipes with different material and different shape
- Equipped with emergency stop device. Both manual and automatic operations are available
- Shrinking stroke is set according to customer’s need with no minimum work piece length

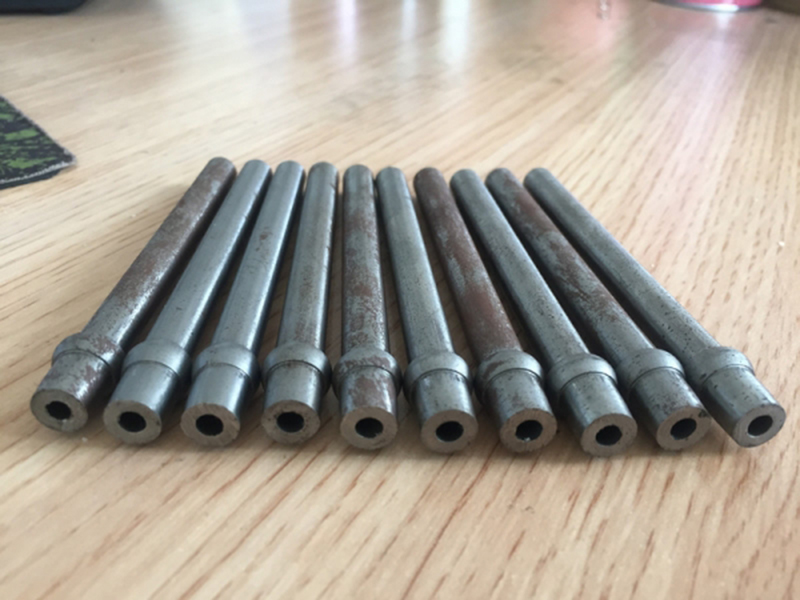

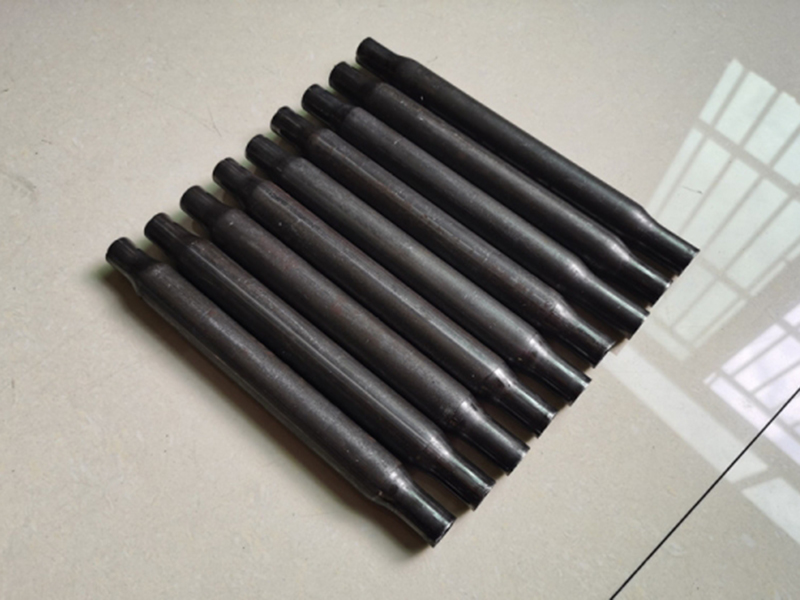

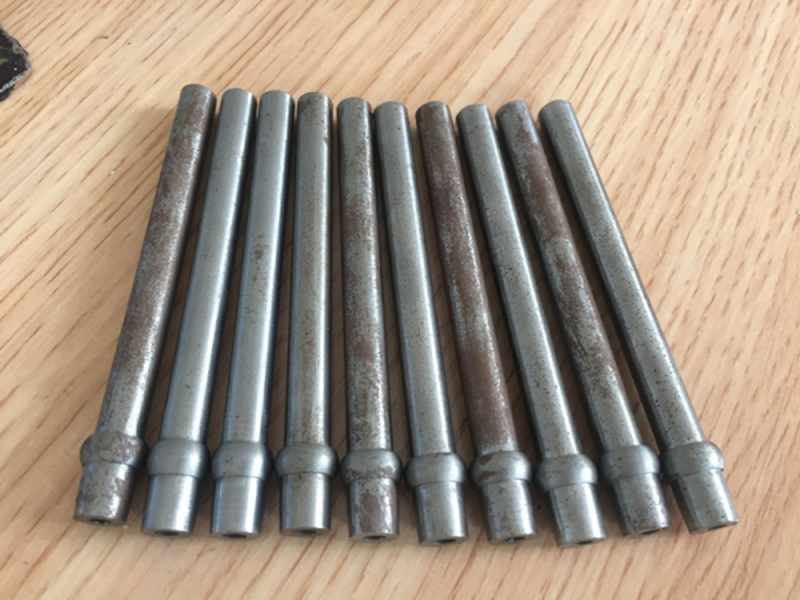

- Forming shapes can be convex, concave, sectional, longflat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with work piece and customers' requirements
- processing length can be increased according to customer's option
| model | TM-80 |
| Max progress capacity | 80×2mm |
| maxi oil cylinder working distance | 130mm |
| oil pressure system | 12mpa |
| cooling system | Water cooling |
| control method | Micro computer |
| machine size（cm） | 260×80×140 |
| cooling system | water cooling |
| Machine weight | 1000kg |
| warranty time | 1 year |
