- The electric control system, using well-known Japanese controllers, such as servo drivers, servo motors, positioning modules, PLC … etc. produced by Mitsubishi Corporation, has strong performance and good stability.
- The powerful PLC can accommodate 800 groups of file editors. If it is not enough, it can be configured separately to expand the number of editing groups indefinitely.
- It has the function of automatically detecting errors and faults and displaying them on the screen so that the operator can easily correct the faults.
- Multiple program language:Chinese/English/Russian/Spanish

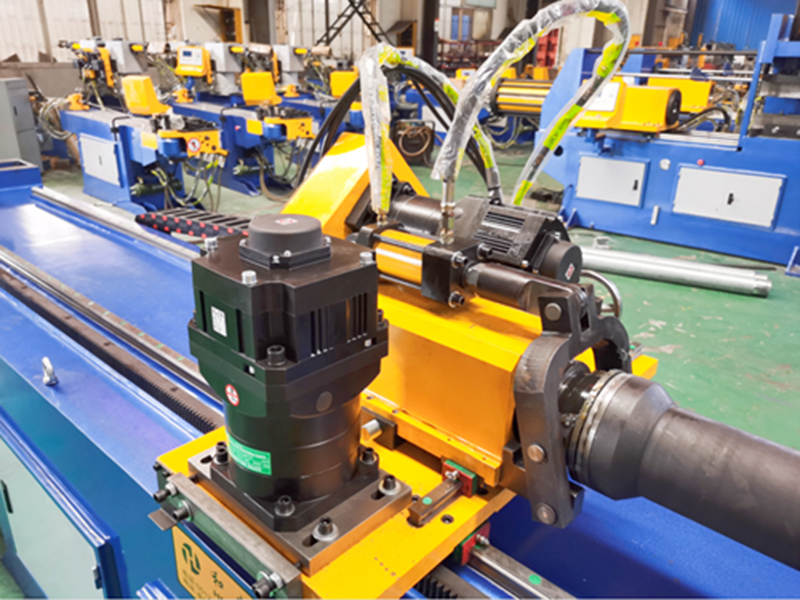

- The feeding shaft and tilting shaft are driven by servo motors with high precision accuracy and good stability

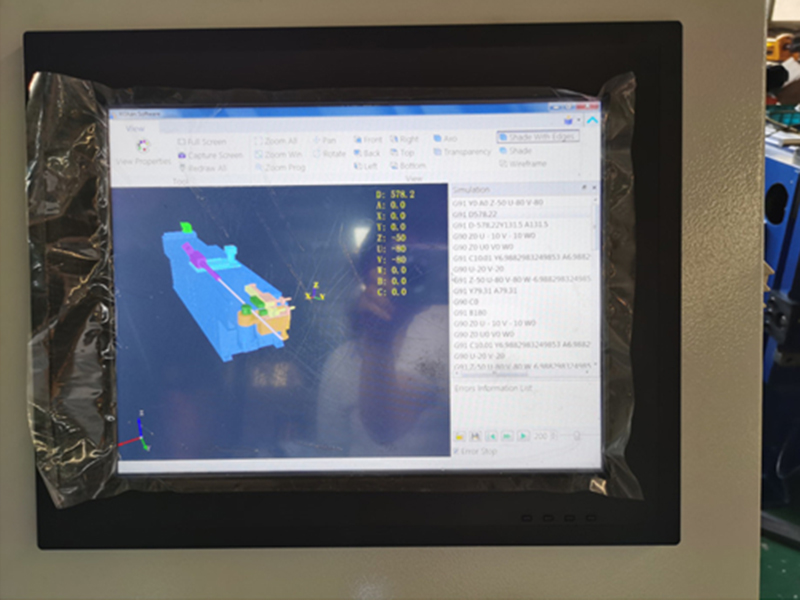

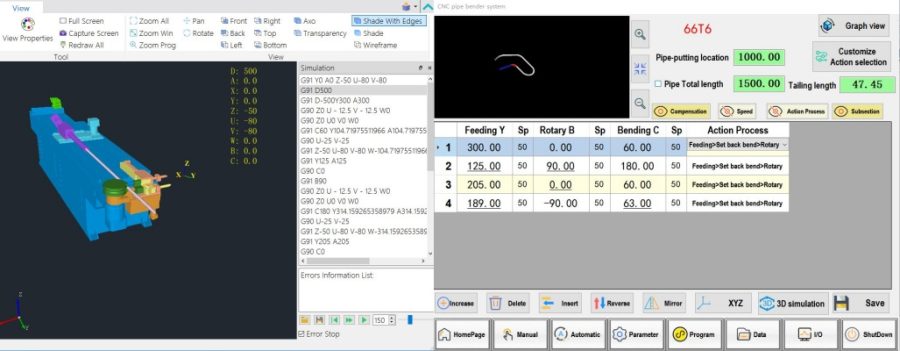

- IPC program with 3D simulation is available
- The feeding mode can be selected as pinch or direct feeding according to different requirements.
- The feeding shaft will automatically detect before it moves to avoid collision with the machine
- The whole equipment inspection system is complete and has X.Y and Z axis origin detection and limit alarm functions.
- feeding,rotation.bending.horizontally moving -drivin by servo motor
- 2 stack tooling

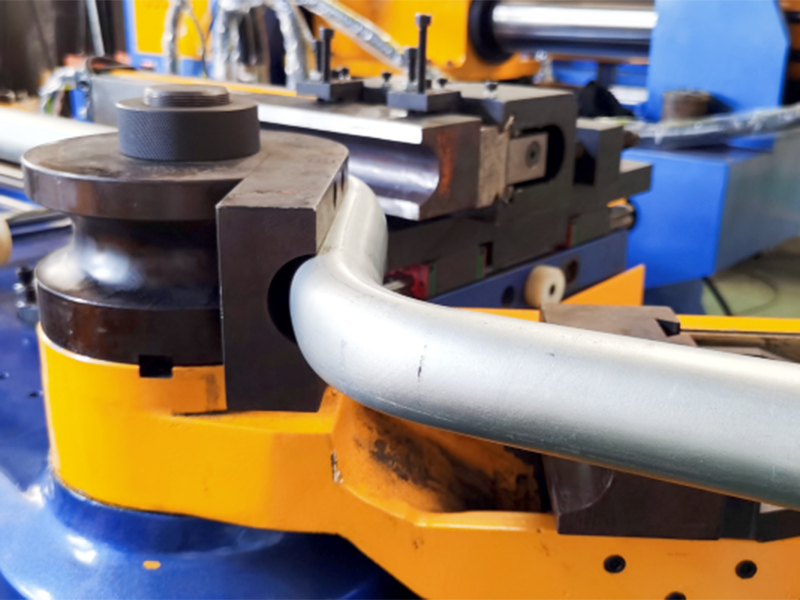

- used to bend products with 2 different bending radius
| Type | SB-50CNC-4A2S |
| Max OD(steel pipe) | Ф50mx2mm |
| maxi bending radius(Steel pipe) 1.5x0D | 250mm |
| maxi pipe OD(ss pipe ) | 38X1.5mm |
| maxi bending radius 2.0XOD(ss pipe) | 250mm |
| Axis number | 4 Axis |
| Max mandrel support length | 2000mm can be increase according to customer's option |
| bending angle | 0-180° |
| Pipe number of files can be set into the program | 800 unit |
| rotation angle | 360 degree |
| Fit to Shapes | Round tube, square tube |
| pipe material | steel pipe, stainless steel, copper pipe, aluminum pipe |
| machine precision | feeding ±0.1mm rotation ±0.1mm bending ±0.1mm |
| feeding servo motor power | 1kw(Mitsubishi ) |
| feeding speed | 500m/sec |
| bending speed | 90degree/sec |
| rotation servo motor power | 0.75kw Mitsubishi) |
| hydraulic motor power | 5.5kw (HJ China brand) |
| Control method | PLC and touch screen |
| Cooling system | fan cooling |
| machine size | 4.40*0.9*1.4m |
| machine weight | 3000kgs |
